PCB Punching Machine 320
A PCB punching machine is a high-speed, mechanical or pneumatic device used to depanel PCBs by punching them out of a larger panel. It’s especially efficient for high-volume production where boards have predefined breakaway tabs or tooling holes for alignment.
Machine Parameters:
| Model: | PCB punching machine 320 |
| Power: | 110/220V(Customized) |
| Working area: | 330*220mm(customized) |
| Contribute(T): | 3-30T |
| Cycle time (s): | 7 |
| Weight (Kg): | 530KG |
| Guarantee: | 1 Year |
| Delivery: | 7-15 Working Days |
| Ability: | 1000 Sets |
| Machine size | 730*810*1700mm(just for your reference) |
| Min. Order: | 1 Set |
Applications of PCB Punching Machine:
-
LED strip and module production
-
High-volume consumer electronics
-
Automotive PCB production
-
Circular or irregularly shaped PCBs (with proper tooling)
-
Cast iron framework for rigidity. Punching dies are changeable. Easy setup of punching dies.
Key Features:
-
PCB Punching machine Mechanism: Uses custom-made dies and tooling to stamp or shear out individual PCBs
-
Tooling Design: Requires precision die sets tailored to each PCB layout
-
Operation Mode: Manual, semi-automatic, or fully automatic
-
Cycle Time: Extremely fast (often <1 second per board)
-
Positioning: Alignment pins or optical sensors for accurate placement
-
Stress-Free: No bending or shearing stress on PCBs or components
-
Dust-Free Operation: Minimal or no debris compared to routing
Advantages of PCB Punching Machine:
-
High Throughput: Ideal for mass production
-
Consistent Quality: Uniform and repeatable cuts
-
Zero Component Stress: Safe for components close to board edges
-
Low Maintenance: Minimal moving parts in pneumatic systems

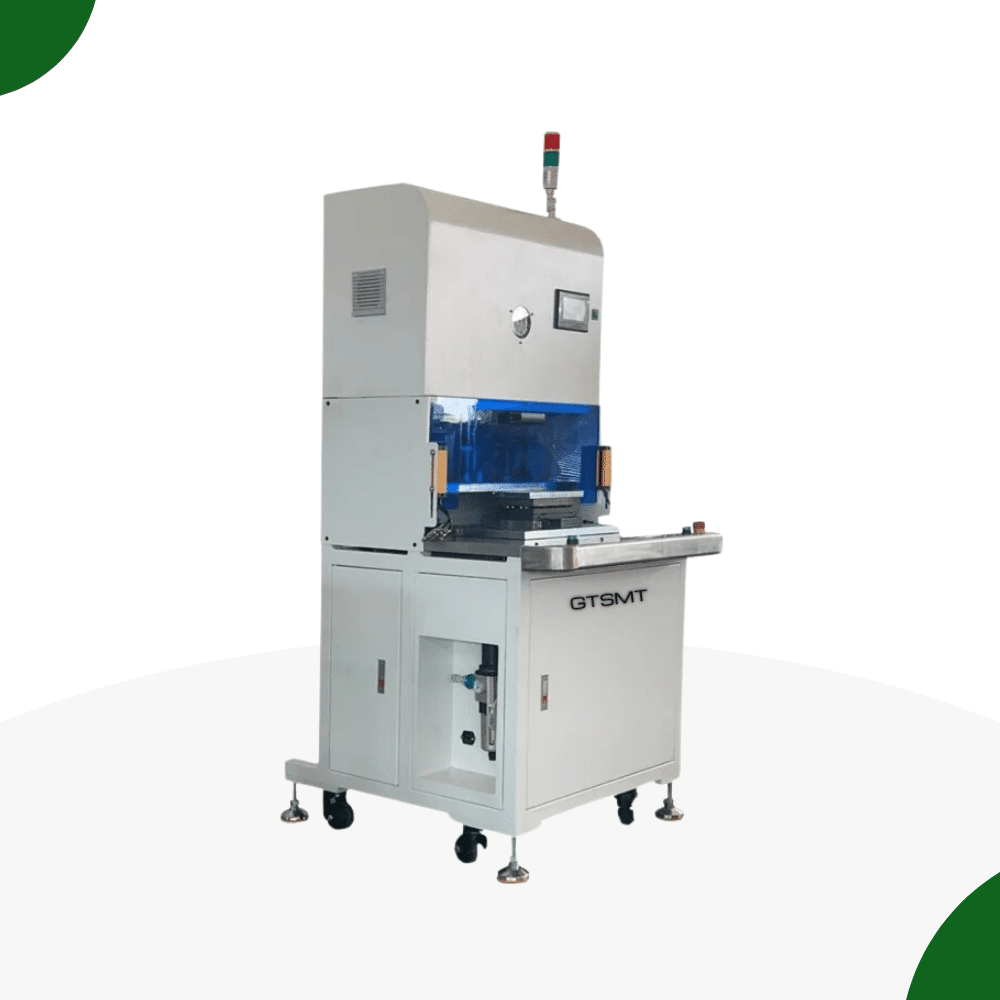

Images of PCB Punching Machine 320:
Comparison With Other Methods:
|
Feature |
Punching Machine |
V-Cut Separator |
PCB Router |
|---|---|---|---|
|
Speed |
★★★★★ |
★★★☆☆ |
★★☆☆☆ |
|
Flexibility |
★★☆☆☆ (needs tooling) |
★★★☆☆ |
★★★★★ |
|
Stress on PCB |
★★★★★ |
★★★☆☆ |
★★★★★ |
|
Initial Investment |
★★★★☆ (for tooling) |
★☆☆☆☆ |
★★★★☆ |
