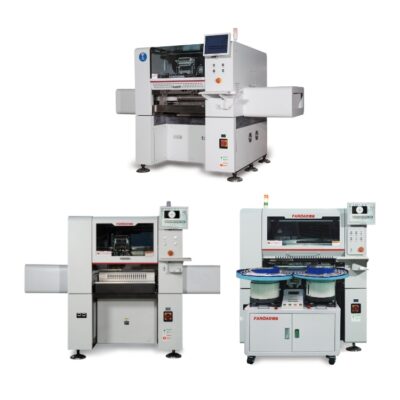

LED PICK and Place Machines
High Speed Led Pick and place machines
Precision, Efficiency, and Reliability in One Compact Solution
Unmatched Performance for LED Manufacturing
Equipped with state-of-the-art features such as area scan cameras for simultaneous identification of multiple components and automatic calibration systems with thermal compensation, our machines ensure maximum production capacity and minimal downtime. The multifunctional placement heads and lightweight electric feeders further enhance productivity, allowing for seamless and efficient operations.
Innovative Features for Optimal Efficiency
Innovative Features for Optimal Efficiency

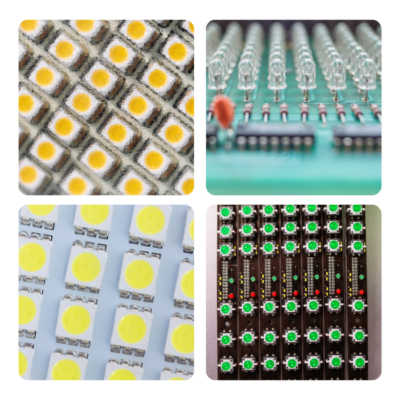

Use case and applications

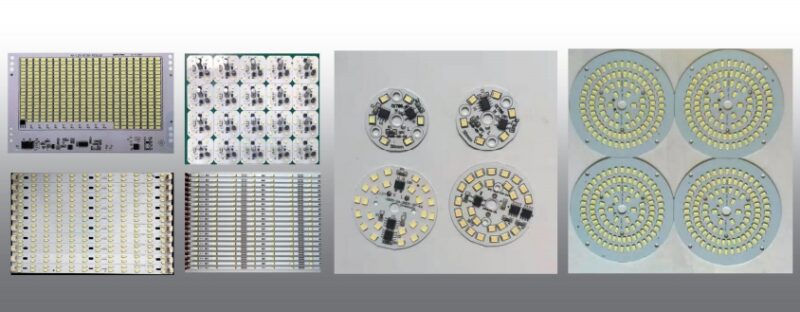

- LED Lighting Production: Specifically designed for assembling LED lighting products, ensuring high-speed and accurate placement of LED components.
- Signage and Display Boards: Ideal for the production of LED signage and display boards, which require precise and efficient assembly.
- Automotive LED Lights: Suitable for assembling LED lights used in automotive applications, ensuring durability and performance.
- Consumer Electronics: Can be used for LED backlighting in consumer electronics such as TV screens and monitors.
- Architectural Lighting: Useful in the production of LED modules for architectural lighting solutions.
Led Model – Pick and Place Machines
Specifications
Configurations
Features
LED Pick And Place Machine Is Suitable For High Speed Production Requirement
High-efficiency Configuration Of Equipment To Maximize Production Capacity

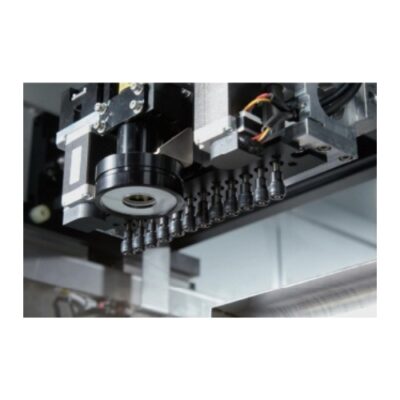

High-speed Placement Head
12 placement heads work simultaneously to increases production capacity by nearly 30% compared with the traditional confi, and can achieve production capacity of 70,000 CPH.

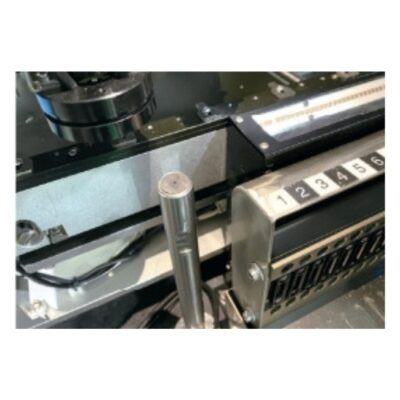

Moveable PCB Transmission
Movable PCB transmission system reduces the waiting time for board transfer and optimizes the placement path.

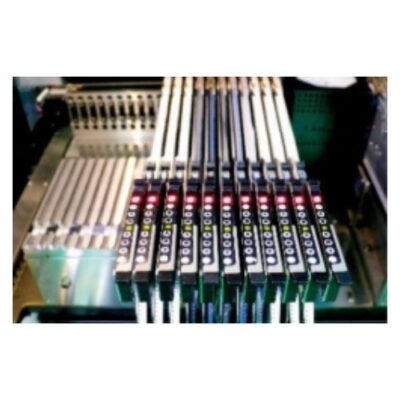

Electric Feeder
The electric feeder can realize 1/2/4mm pitch feeding to save equipment cost and improve component compatibility.

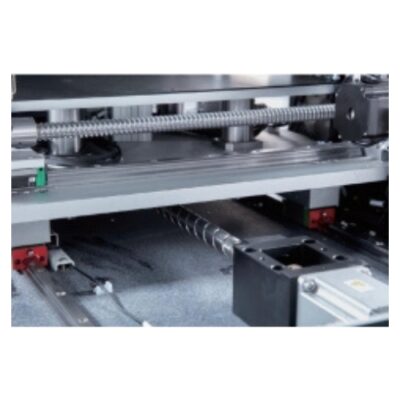

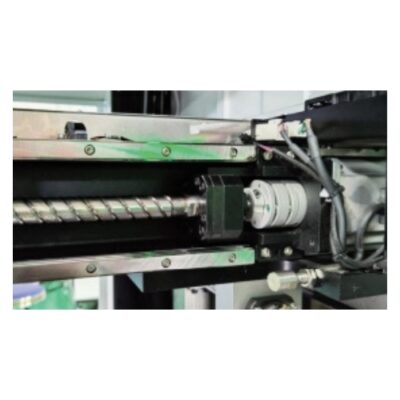

Panasonic Servo Drive
Imported lead screw and Panasonic servo.
Mark Camera
It can automatically scan the placement coordinates to improve efficiency.
High-precision Thermal Compensation Calibration Device
High-precision thermal compensation correction device can monitor and automatically correct the placement accuracy in real time.
Explore Models
LED Model Pick And Place Machine

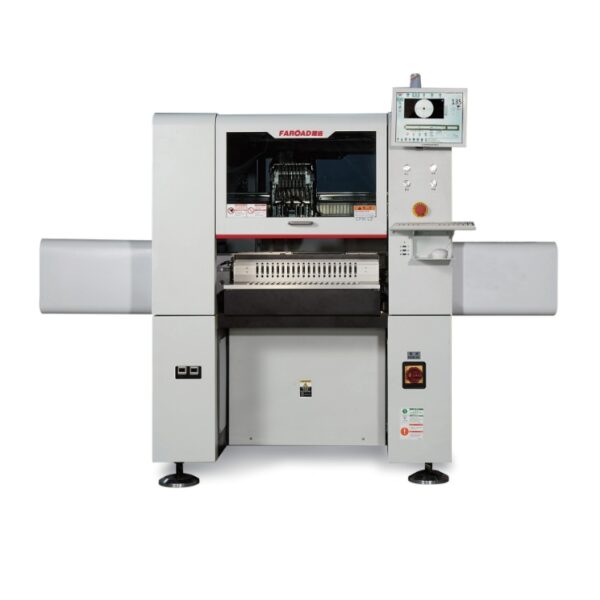

The L3-600/L3-1200 is Faroad’s latest high-speed LED placement machine, designed to deliver unmatched precision and efficiency. As a leader in smart SMT technology, Faroad ensures this machine offers top-tier performance with a production capacity of up to 80,000 CPH
Functions and Features
Precision XY Drive System
Featuring dual linear motors, the L3-600/L3-1200 provides higher precision and stability with minimal wear. Its one-piece molding base enhances mounting stability, ensuring consistent and accurate component placement.
Advance Camera and Calibration
The area scan camera allows simultaneous identification of multiple components, optimizing placement. The automatic calibration system with thermal compensation ensures real-time accuracy, while the built-in suction nozzle buffer protects components from damage.
efficient Performance
With a multifunctional placement head, the L3-600/L3-1200 boosts production capacity by nearly 30%, achieving up to 18,000 CPH. Its lightweight electric feeder supports 2/4mm pitch feeding, reducing costs and improving compatibility. The movable PCB transmission system minimizes waiting time, optimizing the mounting process.
Detailed Specification
| Model | Category | CPM-L3-600 | CPM-L3-1200 |
| Name | Equipment Name | Lamp beads special placement machine | |
| Placement head | Mounting head model | 1212B | |
| Nozzle spacing | 12mm | ||
| Number of nozzles | High-speed placement head (12 heads) | ||
| Equipment size | Length x width x height | 1140*1500*1450mm | |
| The main components | Base | High-strength cast iron one-piece molding | |
| X-arm beam | High-strength aluminum stretch forming | ||
| Control section | X-axis | Flat linear motor + grating ruler | |
| Y-axis | Dual motor linear motor + grating ruler | ||
| Z-axis | Closed loop stepping | ||
| R-axis | Closed loop stepping | ||
| Mounting capability | Optimal placement speed (IPC-9850) | 70000CPH | |
| Chip placement accuracy (CPK) | 0,10mm(XYZ), CPK ≥ 1.0 | ||
| Component size | Minimum size: 0201, maximum size: L12*W12 | ||
| Component thickness | 18mm | 18mm | |
| Weight | weight | About 1600KG | About 1680KG |
| Electrical Specifications | Gas source | 0.5MPa，150L/min | |
| Power supply / Power | AC380/420/480V, 2.5KW | ||
| PCB conveyor system | Transfer plate track | Mobile single-section track (with transfer function) | |
| PCB size | Minimum 50*50mm, Maximum 600*400mm, Maximum 1200*400mm | ||
| PCB Thickness | 0.4-9.5mm | ||
| PCB fixing method | Pneumatic lifting platform, upper and lower clamps | ||
| Feeding system | Number of feeders | 37 stations (8mm) | |
| MES system connection | MES Collection | Support TCP/IP communication protocol | |
| MES Upload | Support QR code / barcode recognition / binding upload MES | ||
| Optional accessories | Optional accessories | Offline loader / rear button panel |
CPM-L3T – LED Model Pick And Place Machine

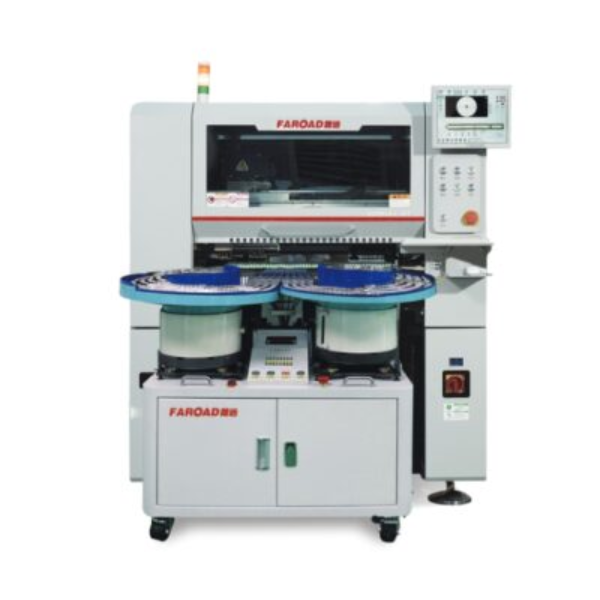

The CPM-L3T is Faroad’s innovative lens mounting machine, designed for high-speed and high-precision applications in TV backlights, LED lighting, and more. As a leader in high-end smart SMT machines, Faroad ensures exceptional performance and increased production capacity by nearly 50%.
Functions and Features
High Speed and Precision
The CPM-L3T integrates a high-speed placement head with an advanced XY linear motor drive system, ensuring rapid response and high-precision closed-loop control. The one-piece molding frame, aged for 365 days and treated with high-temperature annealing, guarantees stability and prevents deformation, even during high-speed operations.
Advance Camera and Calibration
Equipped with a flying camera recognition system, the CPM-L3T reduces recognition time, enhancing efficiency. The high-precision thermal compensation calibration device continuously monitors and corrects placement accuracy in real time, while 8 independent cameras boost production efficiency by identifying materials simultaneously.
Intelligent Software and Management
The CPM-L3T’s intelligent software system includes a digital centering algorithm for easy editing of non-standard devices. It supports one-click import of mounting coordinates and LAN management for seamless database updates. The integrated MES management system enhances manufacturing execution by enabling intelligent production, quality, and efficiency management.
Detailed Specification
| Model | Category | CPM-L3T |
| Name | Equipment Chinese name | Lens mounter |
| Mounting head model | 0821BL | |
| Nozzle spacing | 21mm | |
| Number of nozzles | Multifunctional placement head (8 heads) | |
| Equipment size | Length x Width x Height | 1140*1500*1450mm |
| The main components | Base | High-strength cast iron one-piece molding |
| X-arm beam | High-strength aluminum stretch forming | |
| Control section | X-axis | Flat linear motor + grating ruler |
| Y-axis | Dual motor linear motor + grating ruler | |
| Z-axis | Closed loop stepping | |
| R-axis | Closed loop stepping | |
| Mounting capability | Optimal placement speed (IPC-9850) | 28000CPH |
| Chip placement accuracy (CPK) | 士 0,10mm(XYZ),CPK ≥ 1.0 | |
| Component size | Minimum size: 0201, maximum size: L20*W20″ | |
| Component thickness | 24mm | |
| Weight | weight | About 1600KG |
| Electrical Specifications | Gas source | 0.5MPa，150L/min |
| Power supply / Power | AC380/420/480V,2.5KW | |
| PCB conveyor system | Transfer plate track | Fixed three-section track (with standby function) |
| PCB size | Minimum 50*50mm, maximum 600*400mm (single-stage mounting), maximum 1200*400mm (two-stage mounting) | |
| PCB Thickness | 0.4-9.5mm | |
| PCB fixing method | Pneumatic lifting platform, upper and lower clamps | |
| Feeding system | Number of feeders | 20 stations (8mm) |
| MES system connection | MES Collection | Support TCP/IP communication protocol |
| MES Upload | Support QR code / barcode recognition / binding upload MES | |
| Optional accessories | Optional accessories | 16-position nozzle changer, fixed rear tray, portable front tray, offline loading cart, rear button panel |
