PCB Loader and Unloader L Type

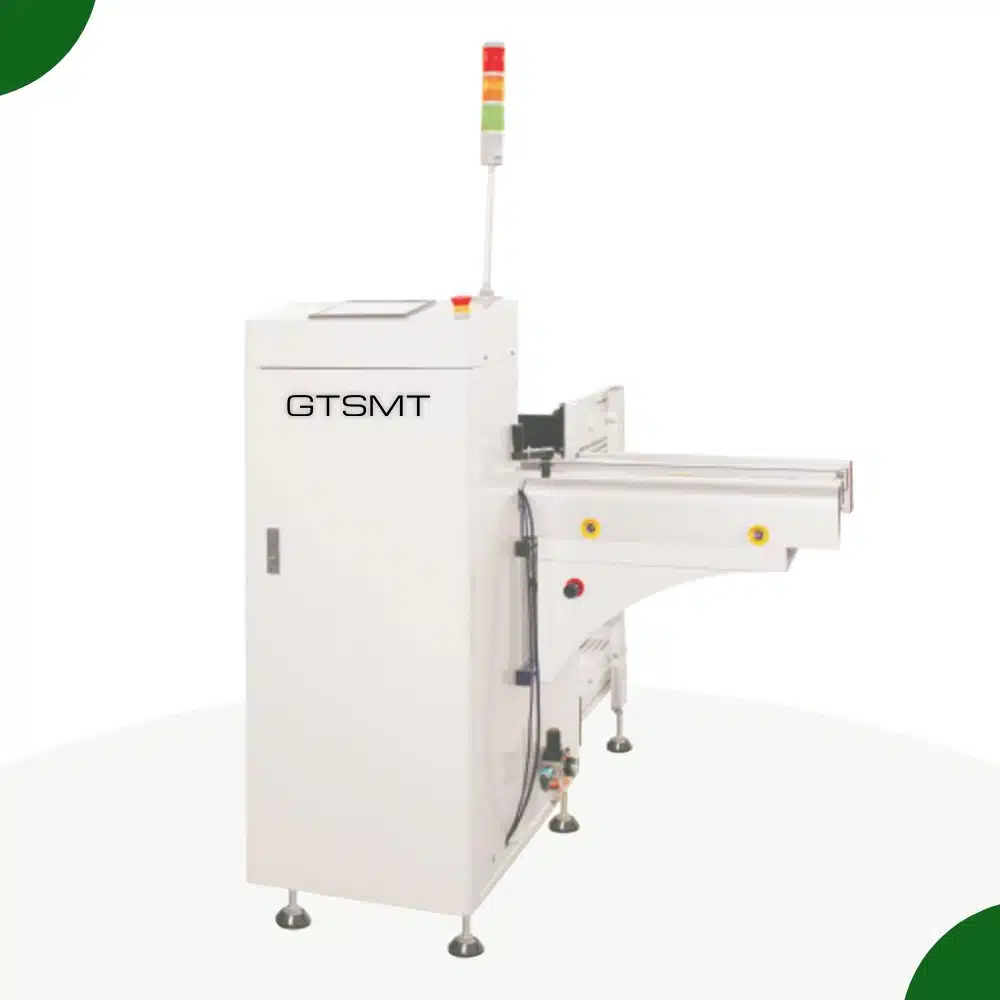

The PCB Loader and Unloader L Type is a specialized PCB handling solution designed to feed or collect PCBs at a 90-degree angle, making it ideal for SMT production lines with limited space or custom layouts. Its L-shaped structure allows for flexible line configurations while maintaining smooth and reliable board transfer.
Space-Saving Board Transfer for SMT Lines
PCB Loader and Unloader L Type equipment is available in both magazine-type and stacking-type formats and integrates seamlessly with upstream or downstream belt conveyors, inspection machines, or reflow ovens. It is fully SMEMA-compatible and suitable for both bare and assembled boards.
Product technical parameters:
| Description | PCB Loader and Unloader L Type is used for loading and unloading PCB boards in the SMT line |
| Number of magazines | Upper conveyor: 1 magazine;
lower conveyor: 1 magazine |
| PCB feed time | Approx. 6 seconds (or customer specified) |
| Magazine replacement time | Approx. 30 seconds (or customer specified) |
| Indexing pitch | 10, 20, 30, 40mm (or customer specified) |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max. 300VA |
| Air pressure and consumption | 4-6 bar; max. 10ltr/min |
| Transport height | 900 ± 20mm (or customer specified) |
| Transport direction | From left to right or right to left |
| PCB thickness | Min. 0.6mm |
| Max. PCB storage capacity | 400 pcs (0.6mm thickness board) |
Product core parts configuration:
| Motor | VTV |
| PLC | Panasonic |
| Elevating screw | TBI |
| Touch screen | Qinglan |
| Magnet switch | SMC |
| Air cylinder | SMC |
| Limit switch | Omron |
| Sensor | Omron |
| Relay | Omron |
| Switching-mode power supply | Omron |
| Flexible cable | Igus |
Product specification of PCB Loader and Unloader L Type:
| Model | Dimension
(L × W × H, mm) |
PCB board size | Magazine size
(L × W × H, mm) |
Weight
(kg) |
| GT-250 | 1150*1150*1205 | 50*50-330*250 | 355*320*563 | 160 |
| GT-330 | 1350*1350*1205 | 50*50-445*330 | 460*400*563 | 220 |
| GT-390 | 1550*1550*1205 | 50*50-530*390 | 535*460*563 | 280 |
Key Applications
• Used at the start or end of SMT lines requiring angled board input/output
• Ideal for U-shaped or space-constrained SMT production setups
• Common in factories needing customized line layouts or cross-line transfers
• Works with PCB conveyors, AOI systems, reflow ovens, and pick-and-place machines
Usage Benefits
• Saves space with 90-degree board movement
• Offers flexible integration into non-linear production flows
• Automates PCB loading and unloading, reducing labor costs
• Ensures smooth, precise, and safe board handling
