FAROAD · MAX Series
Model MK-8MAX
8+8 heating zone reflow oven for LED lighting with mesh belt drive and an air extraction system that prevents oil dripping or leakage.
The MK-8MAX is an LED lighting-specific reflow soldering machine from the MAX Series. Its inlet and outlet air extraction system prevents oil dripping or leakage, and it uses a mesh belt drive with PC+PLC control. It provides 8 upper and 8 lower heating zones over a 3142mm heated length.
| Number of Heating Zones | Upper 8 / Lower 8 |
|---|---|
| Length of Heating Zones | 3142mm |
| Length of Cooling Zones | 1065mm |
| Heating Method | Internal Circulation Heating |
| Number of Cooling Zones | 3 (cold air internal circulation type), 20m³×3 (Channels) |
| Cooling Method | Natural Air Cooling |
| Heating-Up Time | 15-20 minutes |
| Temperature Control Range | Room Temperature ~ 350℃ |
|---|---|
| Temperature Control Method | PID full closed-loop control, SSR drive |
| Temperature Control Precision | ±1℃ |
| PCB Temperature Distribution | ±1℃ |
| Transport Belt Width | 700mm |
|---|---|
| Transport Direction | Left→Right (or Right→Left) |
| Transport Belt Height | 900±20mm |
| Transport Belt Type | Mesh Belt Drive |
| Transport Belt Speed | 300-2000mm/min |
| Upper PCB Height | Upper 60mm |
| Setting Parameter Storage | Multiple parameters |
|---|---|
| Abnormal Alarm | Temperature, board drop/jam |
| Signal Beacon | LED tri-color |
| Power Supply | 3-phase 5-wire 380V, 50/60Hz |
|---|---|
| Starting Power | 28KW |
| Normal Operating Power | 8KW |
| Overall Dimensions (L×W×H) | 5100×1820×1400mm |
| Color | Computer Gray (subject to technical agreement) |
| Rectifier Plate Material | Galvanized / Aluminum / Stainless steel (optional) |
Source: FAROAD 2026 English Brochure (Placement Machine and Reflow Oven Series), pages 50-53. Specifications may change without notice; confirm with your quotation.
MK-10MAX
Image coming soon
FAROAD · LED-Specific Reflow Ovens
10+10 heating zone reflow oven for LED lighting with mesh belt drive and an air extraction system that prevents oil dripping or leakage.
MK-8
Image coming soon
FAROAD · Energy-Saving Reflow Ovens
8+8 heating zone energy-saving lead-free hot air reflow oven with PC+PLC control, available in single and dual track.

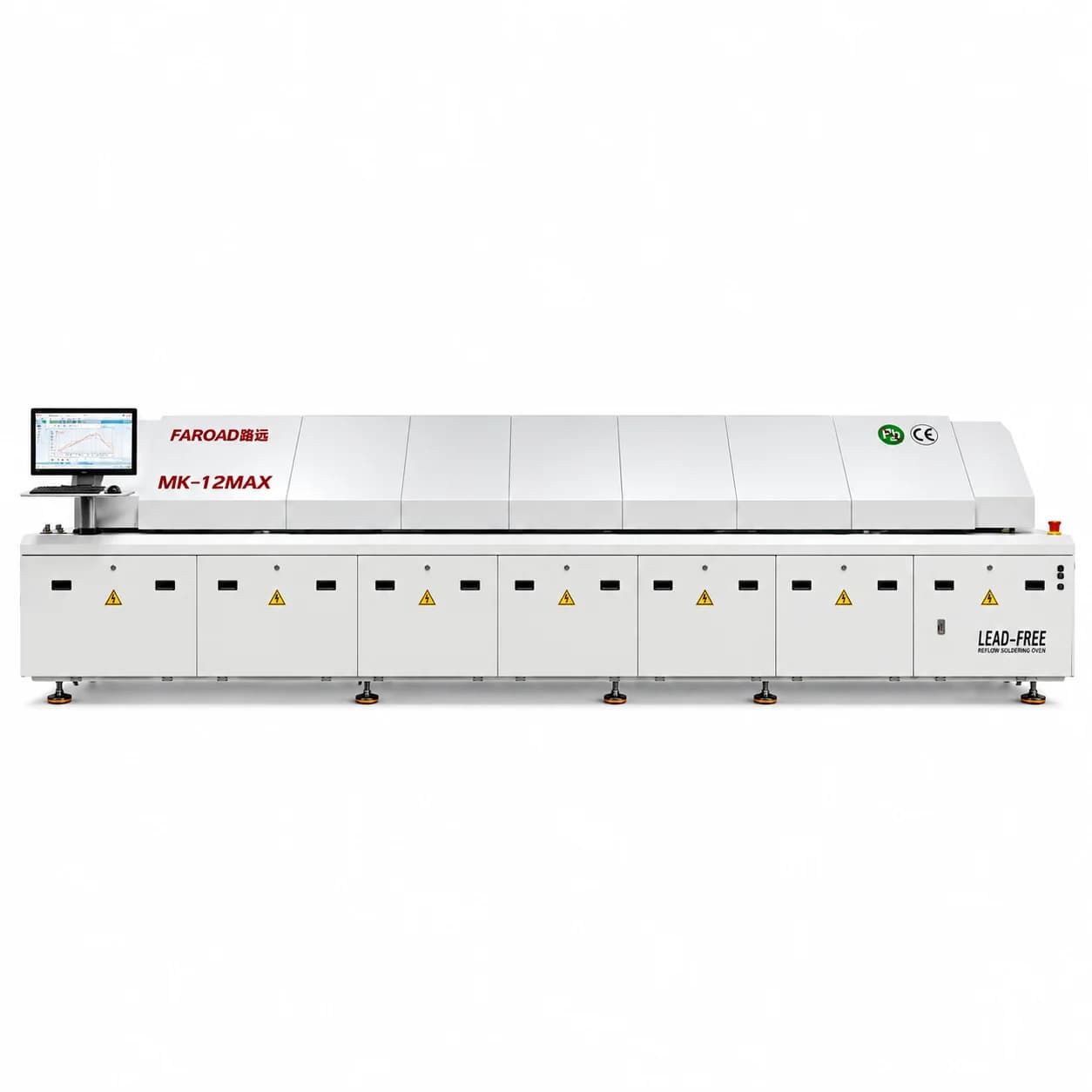

FAROAD · LED-Specific Reflow Ovens
