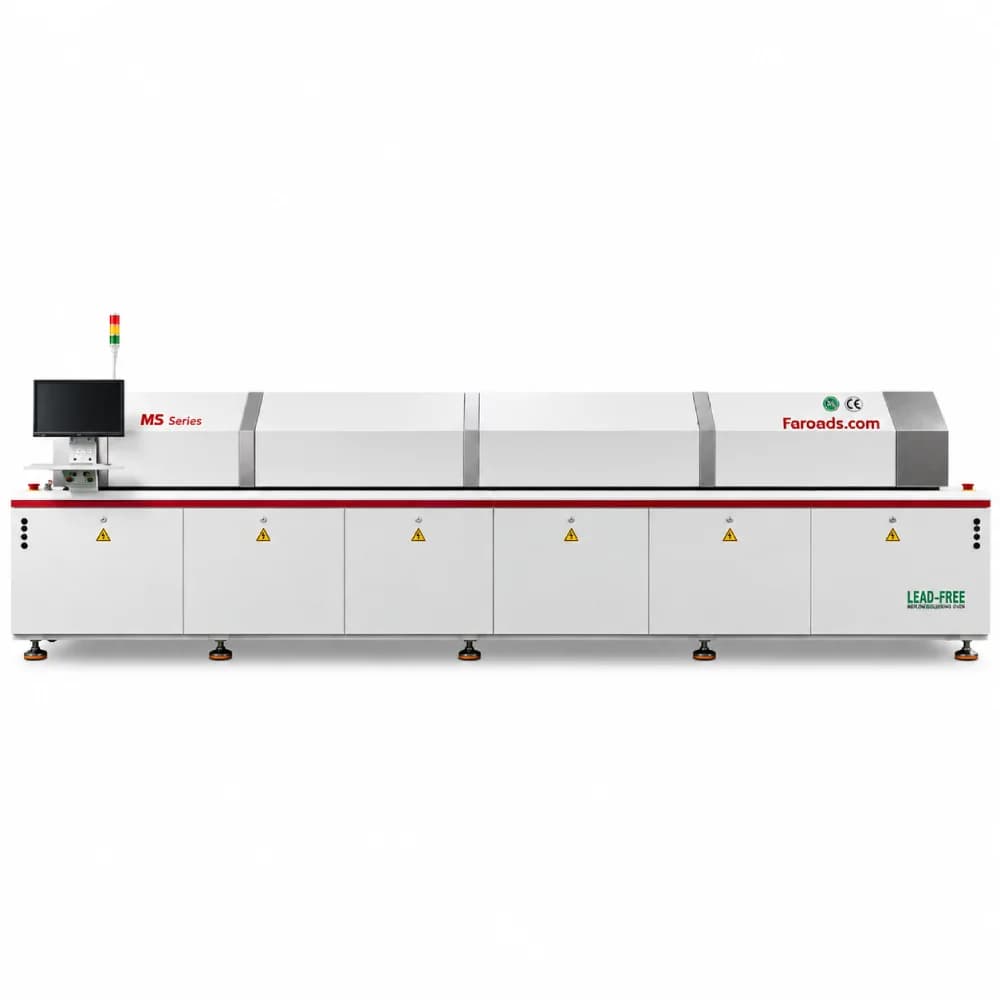

FAROAD · MS Series
Model MS-8
8+8 heating zone, single track lead-free hot air reflow oven with nitrogen-saving rosin recovery. Nitrogen version: MS-8N.
Available models
The MS-8 is a high-end lead-free hot air reflow soldering machine from the MS Series, with 8 upper and 8 lower heating zones over a 3142mm heated length and single track transport. The series combines an efficient recovery system, low energy consumption and an intelligent control system. The MS-8N model adds a nitrogen protection device.
| Number of Heating Zones | Upper 8 / Lower 8 |
|---|---|
| Length of Heating Zones | 3142mm |
| Number of Cooling Zones | 2 cooling zones (cold air internal circulation type) |
| Air Volume | 25m³/min |
| Heating-Up Time | Approx. 15min |
| Temperature Control Range | Room Temperature ~ 350℃ |
|---|---|
| Temperature Control Method | PID full closed-loop control, SSR drive |
| Temperature Control Precision | ±1℃ |
| PCB Temperature Distribution | ±1℃ |
| Maximum PCB Width | 50-490mm (Single Track, adjustable) |
|---|---|
| Transport Direction | Left→Right (L→R), Optional: Right→Left (R→L) |
| Transport Guide Rail Fixing | Front fixed (Optional: Rear fixed) |
| Transport Belt Height | 900±20mm |
| Transport Belt Type | Chain drive + mesh drive (single-row chain) |
| Upper PCB Height | Upper 30mm / Lower 20mm |
| Transport Belt Speed | 300-2000mm/Min |
| Setting Parameter Storage | Can store multiple setting parameters |
|---|---|
| Abnormal Alarm | Temperature abnormality, board drop or jam alarm, etc. |
| Signal Beacon | LED tri-color light (Yellow-Heating Up; Green-Constant Temperature; Red-Abnormal) |
| MES Collection & Upload | Supports TCP/IP protocol; QR code/barcode recognition for MES upload |
| Nitrogen Protection Device | MS-8N: oxygen analyzer, nitrogen flow meter, external water cooler |
| Power Supply | 3-phase 380V 50/60Hz |
|---|---|
| Starting Power | 30KW |
| Normal Operating Power | 7KW |
| Overall Dimensions (L×W×H) | 5250×1450×1540mm |
| Weight | Approx. 2600kg |
| Color | Computer Gray (subject to technical agreement) |
| Rectifier Plate Structure | Galvanized plate / Aluminum plate / Stainless steel (optional) |
Source: FAROAD 2026 English Brochure (Placement Machine and Reflow Oven Series), pages 40-45. Specifications may change without notice; confirm with your quotation.
Nitrogen protection device
MS-8N model: oxygen analyzer, nitrogen flow meter, external water cooler
Right→Left transport direction
Rectifier plate material
Galvanized plate / Aluminum plate / Stainless steel
Rear fixed guide rail
