FAROAD · P Series

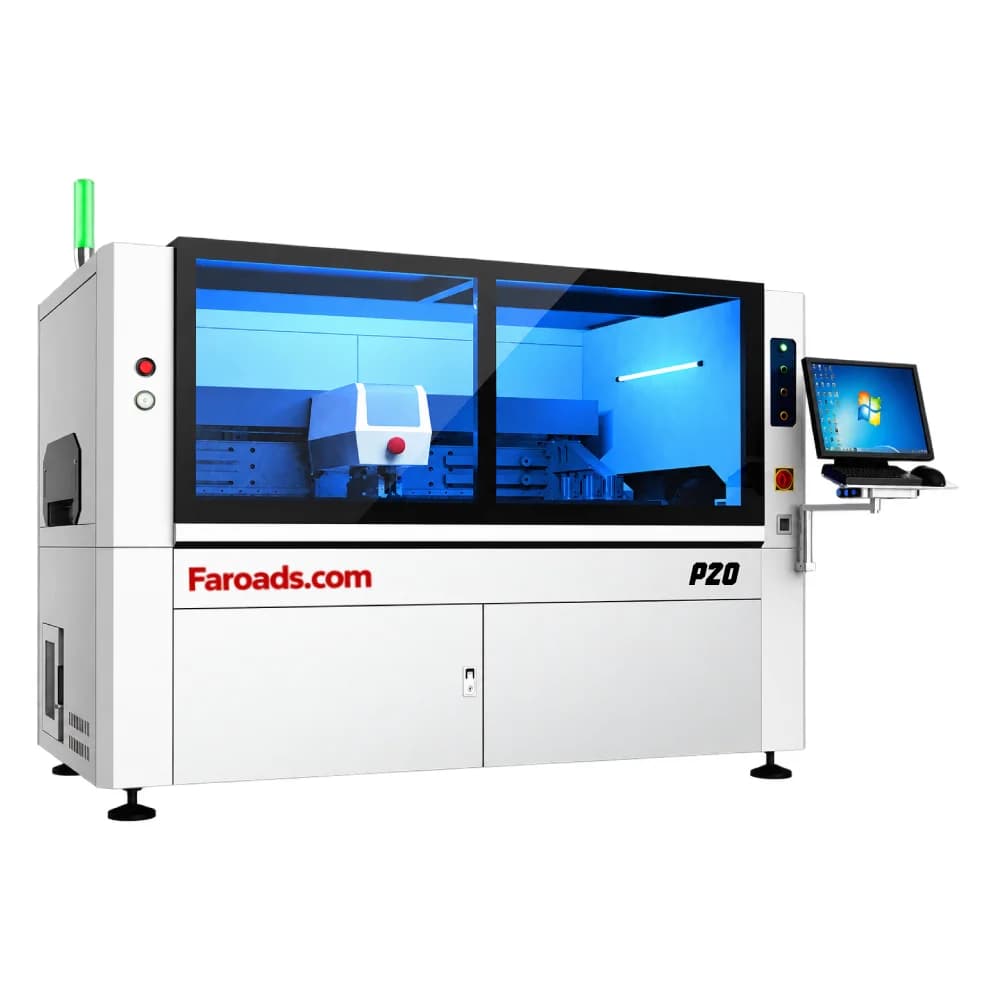

Led Solder Paste Printer P20
Model P20
Led Solder Paste Printer
Available models
- P121200mm Long baord
Overview
Led Solder Paste Printer
Key features
- Long PCB Board for Led PCB board
- Fast Process for PCB assembly
- Easy Application and Cleaning System
- Ultra long length for PCB board
Technical specifications
| Printing Accuracy | ±30 μm @ 6σ, CPK≥2.0 |
|---|---|
| Repeat Position Accuracy | ±15 μm @ 6σ, CPK≥2.0 |
| Cycle Time | 15 s |
| Screen Frame Size | 737 × 300 mm – 1800 × 650 mm |
| Screen Frame Fixed | Cylinder |
| Platform Adjustment Range | X: ±6 mm / Y: ±6 mm |
| Platform Adjustment Angle | Z: ±2° |
| Print Size | Standard: Min. 50 × 50 mm Max. 1500 × 350 mm |
| PCB Thickness | 0.4–6 mm |
| PCB Weight | ≤4 kg |
| Transport Direction | L→R, L→L, R→L, R→R |
| Transport Speed | 100–150 mm/s, programmable track width adjustment |
| Transport Height | 900 ± 40 mm |
| Demoulding Method | Separation after squeegee up; Squeegee up after separation |
| Demoulding Speed | 0.1–20 mm/s |
| Demoulding Distance | 0–30 mm |
| Voltage | 220 V ±10%, single phase 50/60 Hz |
| Power | 3 kW |
| Air Supply | 4.5–6 kgf/cm² |
| Appearance Size | 2600 × 1235 × 1545 mm |
Request a quote for the P20
Share your board sizes, components and throughput targets and our team will recommend a configuration.
