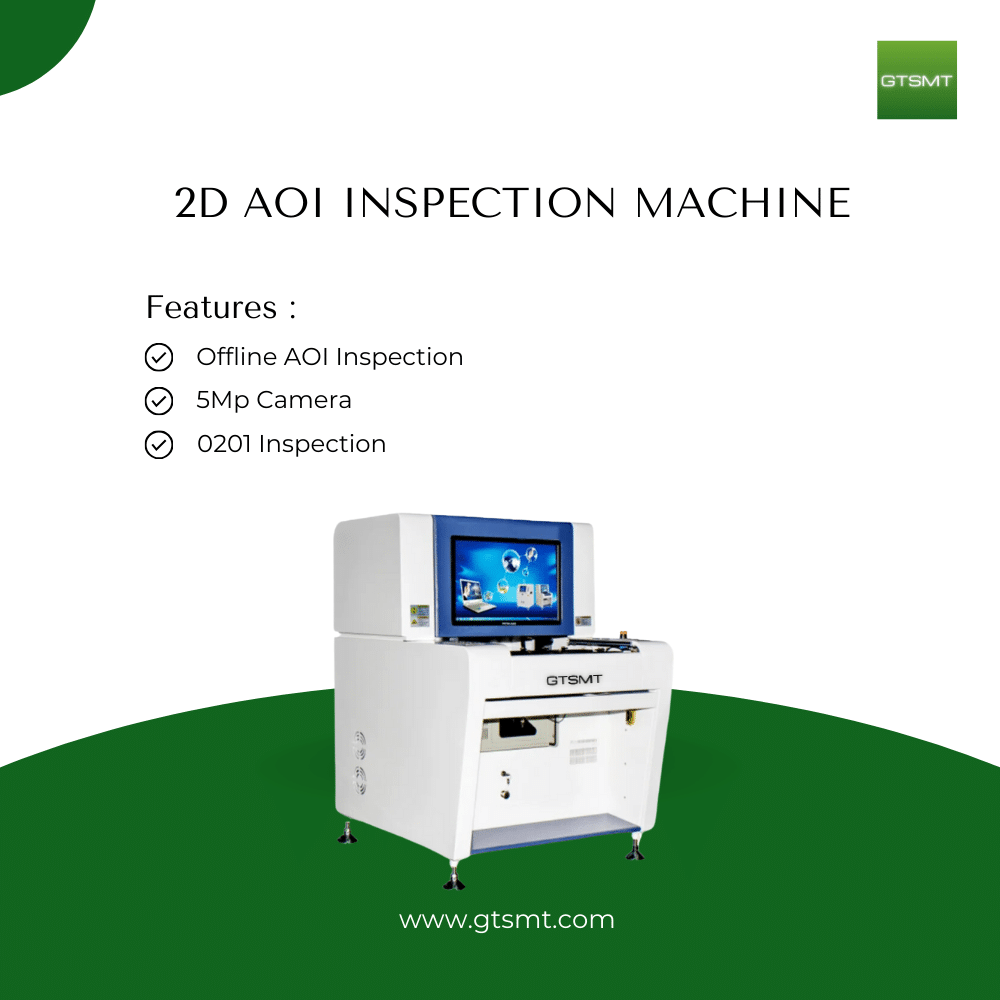

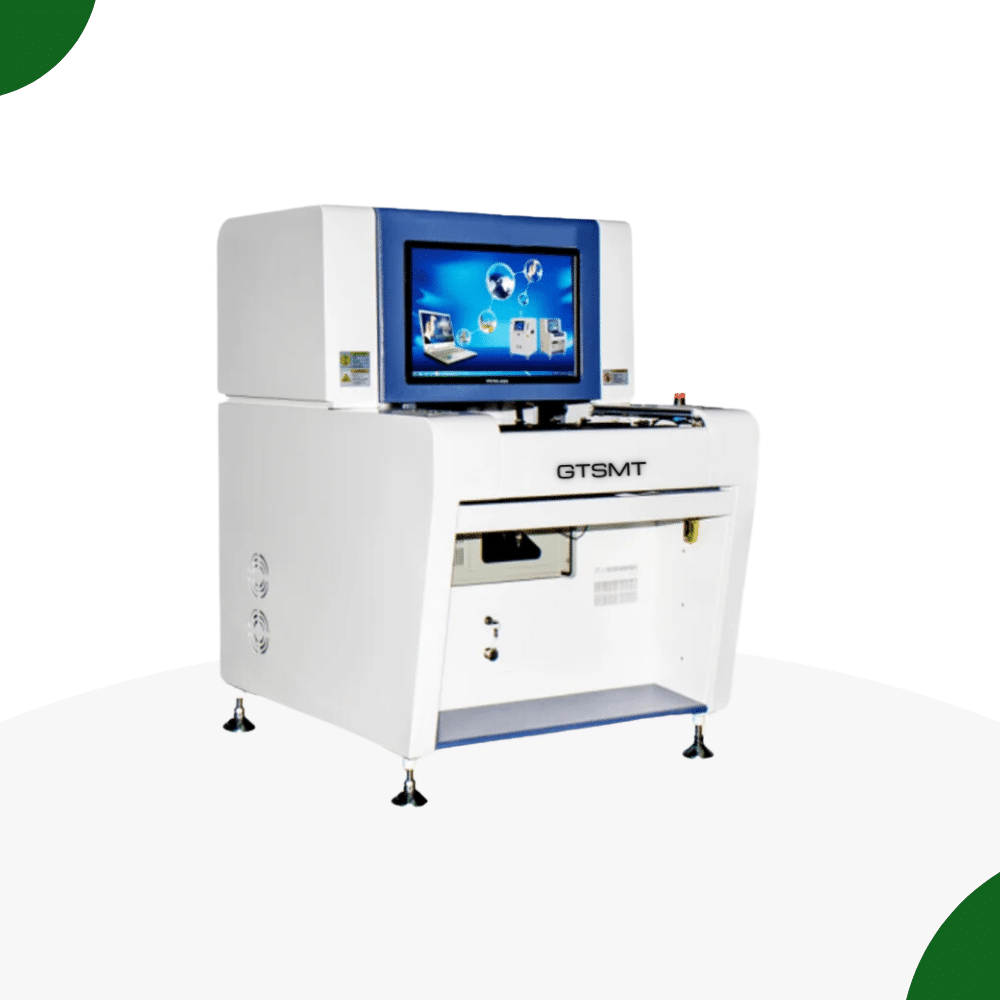

2D AOI Inspection Machine
The 2D AOI inspection Machine is a high-performance solution for precise quality inspection in electronics manufacturing. Equipped with advanced imaging technology, it performs fast and accurate checks for solder joint defects, component placement, and PCB surface issues.
|
CATEGORY |
ITEM |
SPECIFICATION |
||
|
RECOGNITION SYSTEM |
INSPECTION |
Using multiple algorithms synthetically such as WIDM、Color Image contrast technology、Color extracting technology, similarity, two-value handling technology 、OCR/OCV and so on. |
||
|
CAMERA |
Color CCD camera: 12/15/20 um |
|||
|
LAMP-HOUSE |
Ring RGB LED flash lamp-house |
|||
|
IMAGE PROCESSING SPEED |
0201 CHIP |
<10ms |
||
|
PER-IMAGE TIME |
<170ms |
|||
|
INSPECTION ITEMS |
PASTE PRINTIG DEFECTS |
Misaligned, overflow, insufficient, pasting open, stain |
||
|
COMPONENT DEFECTS |
Missing, misaligned, skewed, tombstone, billboard, overtumed, reversed polarty, wrong, damaged |
|||
|
SOLDER DEFECTS |
Overflow, insufficient, short solder, stain |
|||
|
ANTI STATIC MEASURES |
Anti-static electric outlet, anti-static wreath |
|||
|
MECHANISM SYSTEM |
PCB SIZE |
25×25mm – 330×480mm |
||
|
PCB THICKNESS |
0.5mm – 2.5mm |
|||
|
PCB WARP TOLERANCE |
<2mm |
|||
|
COMPONENT CLEARANCE |
TOP<28mm，BOT＜75mm |
|||
|
MINIMUM SPACE PARTS |
0201 chip （15um） |
|||
|
X、YPLATFORM |
DRIVER |
AC server |
||
|
ORIENTATION |
<15um |
|||
|
MOVING SPEED |
700mm/s |
|||
|
SOFT SYSTEM
|
OPERATION SYSTEM |
Microsoft Windows XP Professional |
||
|
CONTROLLING & RECOGNIZING |
CHARACTERISTICS |
WIDM, study OK template, automatically set template imaging, identify data and error numerical value |
||
|
OPERATION |
Graphic programming, take along with chip library and get an inspection frame according with chip shape, aureate position, micron adjust, and easy programming |
|||
|
Mark |
MARK NUMBERS |
0 – 2marks can be chosen |
||
|
RECOGNISING SPEED |
0.5s/pcs |
|||
|
CONTROLLER |
COMPUTER |
CPU:Intel dual-core, MEMORY:4G, HARDDISK:500G |
||
|
DISPLAY |
23 inch TFT |
|||
|
OTHERS |
MACHINE DIMENSIONS （L*W*H） |
87cm×104cm×130cm |
||
|
WEIGHT |
~360kg |
|||
|
POWER SUPPLY |
AC220V, 10%, single phase 5A 50/60HZ, power consumption 600W |
|||
Key Features:
- High-Resolution Camera: Captures detailed 2D AOI images for reliable defect detection.
- Advanced Inspection Algorithms: Identifies missing components, misalignments, and soldering defects.
- Customizable Inspection Parameters: Tailored to suit different PCB layouts and production needs.
- High-Speed Operation: Optimized for seamless integration into SMT assembly lines.
- User-Friendly Interface: Intuitive controls and software for quick setup and efficient operation.
- Compact and Durable Design: Space-saving build with robust construction for long-term use.
Applications of 2D AOI inspection machine :
- 2D AOI Inspection of SMT PCB inspection and through-hole components
- PCB assembly quality assurance
- Detection of solder bridges, tombstoning, and other common defects
Benefits:
- Improves product quality with accurate and consistent 2 aoi inspection machine operation
- Reduces production costs by identifying defects early
- Enhances production efficiency with fast, automated operation
The 2D AOI Inspection Machine is a must-have for manufacturers seeking to ensure flawless electronic assemblies and maintain high-quality standards.
