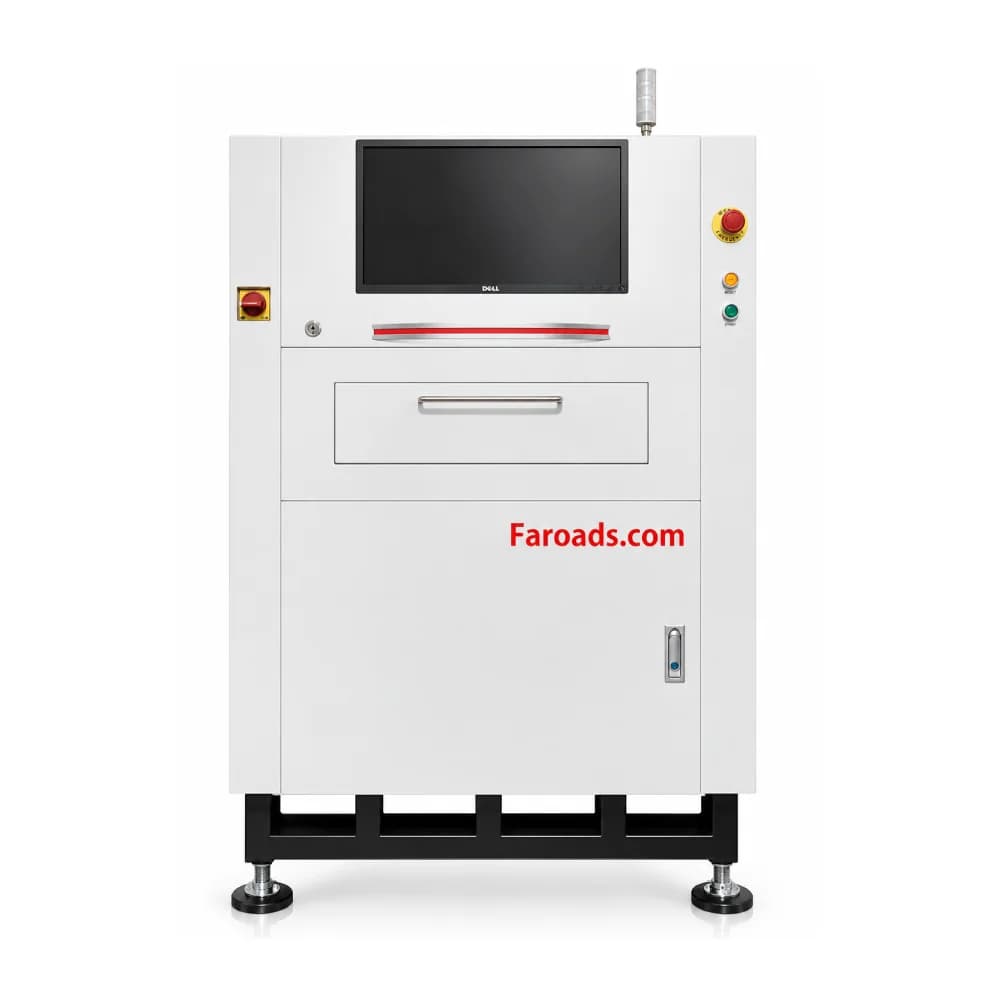

AOI Inspection Machine Inpex M400

FAROAD · Inpex Series

2D Inline AOI Inspection Machine Double Side Projection

Model Inpex M400

Double-Sided Projection Inline AOI is an automated optical inspection system designed for inline PCB inspection from both top and bottom sides, combining high-resolution imaging, telecentric optics, and RGB three-color illumination for precise and reliable defect detection.

Available models

  • Inpex M300Bottom Projection Only
Request a QuoteView specifications

Overview

M400 Double-Sided Projection Inline AOI is designed for automated inspection of PCBs from both the top and bottom sides within an SMT production line. It uses a 12-megapixel industrial camera, telecentric lens, and RGB three-color lighting to provide detailed optical inspection with a standard resolution of 16.5 μm.

Key features

  • Centralized management of coating AOI in the production lines achieves remote review, offline programming, and debugging upgrading.
  • Support one-dimensional or two-dimensional barcode recognition.
  • Rich data charts can meet the needs of on-site quality tracking and analysis.
  • Automatically adjust the width of the program and call it by identifying the PCB barcode. It makes manual participation unnecessary and supports MES instructions.
  • Coating AOI may communicate with coating or dispensing machines for data exchange to achieve closed-loop feedback.
  • After the end of the test, a full board image of different light sources is output to meet the post-stage quality traceability requirements.

Technical specifications

ModelInpex M400 - Double-Sided Projection Inline Machine
Camera12-megapixel industrial camera
LensTelecentric Lens
Light SourceRGB three-color light
Resolution16.5μm (Optional: 10μm)
FOV16.5μm: 64 × 48mm; 10μm: 40 × 30mm
PCB Size510 × 460mm
PCB Thickness0.3–5mm
Edge Width3mm
Top/Bottom Clear HeightStandard: TOP 50mm / BOT 30mm; Maximum Adjustable: TOP 50mm / BOT 50mm
Maximum PCB Weight7kg
Inspection Speed230–300ms/FOV
X, Y MotionServo Motor
Operating SystemWindows 10 64bit
Power SupplyAC220V, 50/60Hz
Air Pressure0.5MPa
Track Height900 ± 20mm (Optional: 750 ± 20mm)
Machine WeightAbout 1300kg
Machine SizeL1080 × W1493 × H1615mm (Excluding warning lights)

Options

  • 10 μm Inspection Resolution

    optional higher-resolution configuration.

  • 12-Megapixel Industrial Camera

    the M400 is specified with a 12 MP camera.

  • 750 ±20 mm Track Height

    optional track-height configuration.

  • TOP 50 mm / BOT 50 mm Maximum Adjustable Clearance

    adjustable inspection clearance configuration.
