Model L400

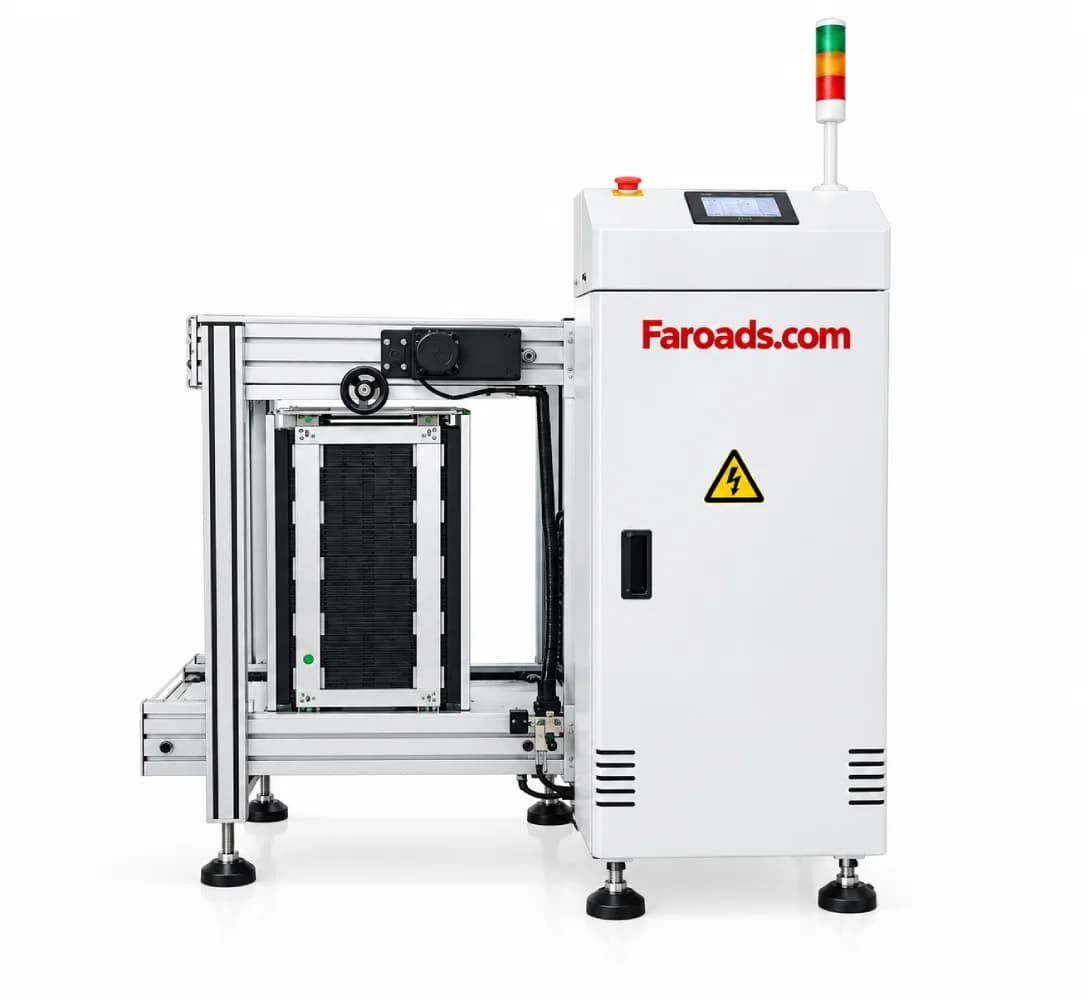

PCB Loader Machine L400 automates PCB loading from magazines into an SMT production line, providing smooth and reliable board transfer while reducing manual handling and improving production efficiency.
PCB Loader is designed to automate the initial PCB feeding process in SMT production lines. It transfers PCBs from storage magazines onto the conveyor system, providing consistent board handling and reliable integration with downstream SMT equipment. With automated PCB handling and adjustable operating parameters, the loader helps reduce manual intervention, improve production flow, and maintain stable material movement throughout the assembly line.
| Item | PCB Magazine Loader Machine |
|---|---|
| Machine Type | Loader |
| Voltage | 220 V, 110 V |
| Core Components | PLC, Motors, Touch Screen |
| Warranty | 1 Year |
| Weight (kg) | 150KG Approx |
| Brand Name | Faroads.com |
| Place of Origin | Shenzhen China |
| PCB Size (L*W) | 50*50mm-400*330mm |
| Dimension (L*W*H) | 1670*850*1250mm |
| Magazine Size (L*W*H) | 460*400*563mm |
| Loading Time | Approx. 6 seconds Magazine Change Over Time Approx. 25 seconds |
| Magazine Change Over Time | Approx. 25 seconds |
| Power Source & Consumption | 100-230VAC (customized), 1ph, max 300VA |
| Air Pressure & Consumption | 4-6 bar, max 10 L/min |
| Transport Height (mm) | 900±30 (or customized) Item PCB loader machine SMT PCB magazine loader |
FAROAD · PCB Handling
Mini PCB Loader Machine provides automated PCB loading for SMT production lines, delivering stable board transfer in a compact design while reducing manual handling and improving production efficiency.
FAROAD · PCB Handling

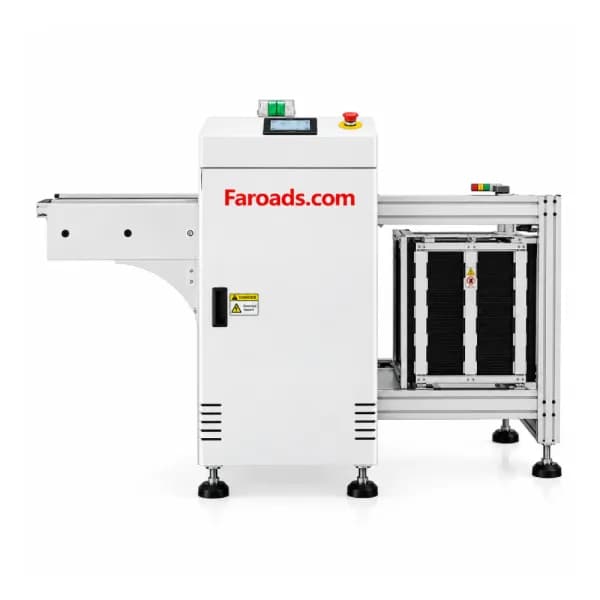

PCB Unloader Machine UL400 automates PCB unloading from SMT production line to PCB Magazine, providing smooth and reliable board transfer while reducing manual handling and improving production efficiency.
