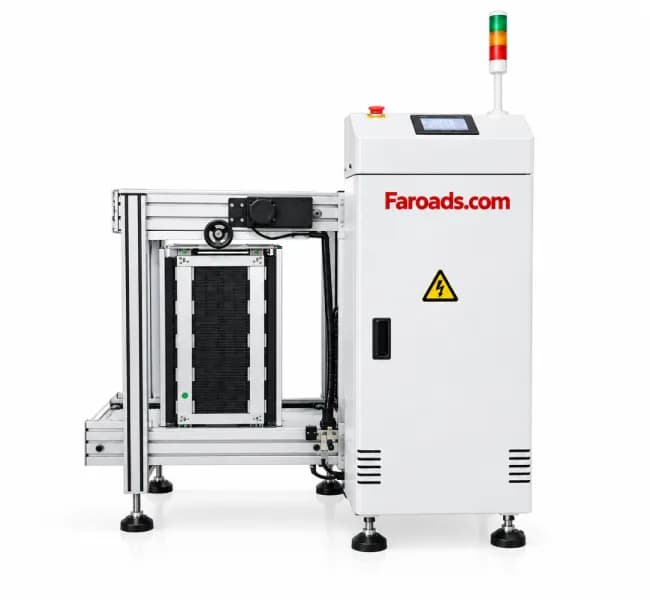

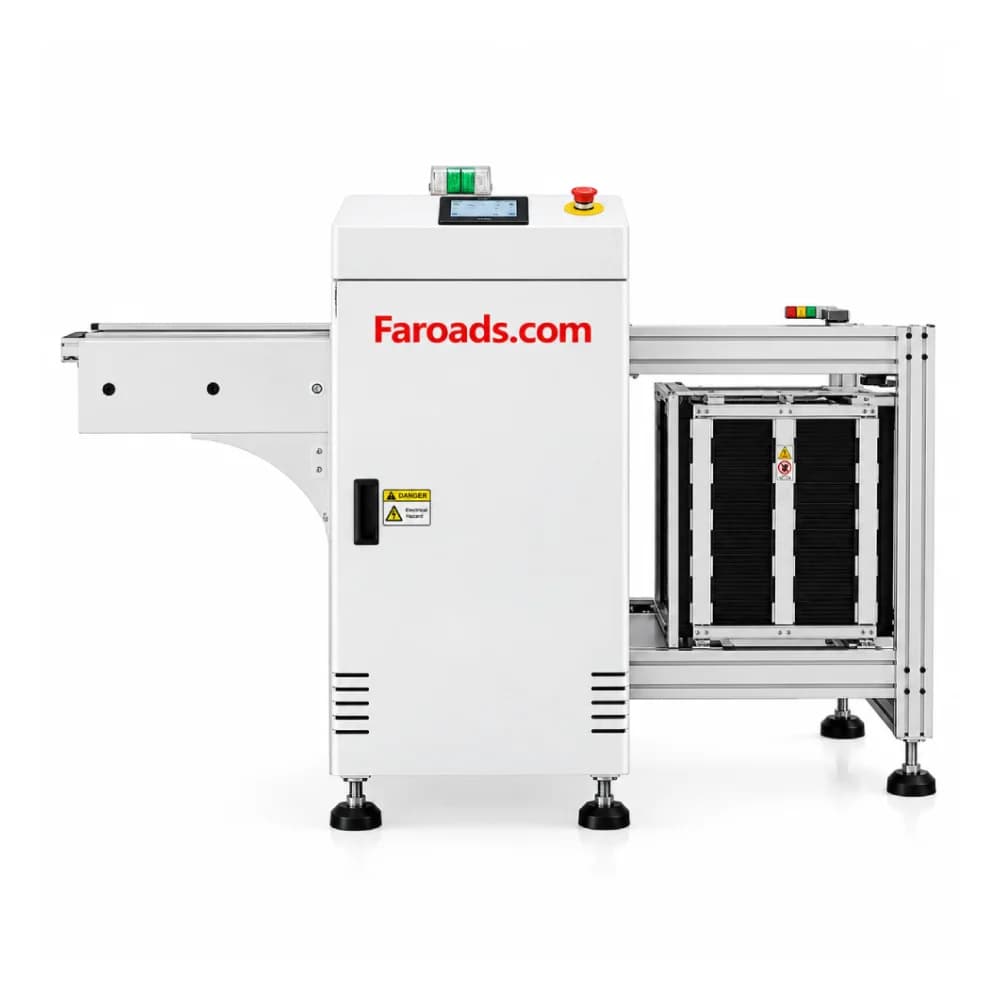

PCB Magazine Unloader Machine

Model UL400

PCB Unloader Machine UL400 automates PCB unloading from SMT production line to PCB Magazine, providing smooth and reliable board transfer while reducing manual handling and improving production efficiency.

Request a QuoteView specifications

Overview

PCB Unloader is designed to automate the final PCB handling process in SMT production lines. It receives PCBs from the conveyor system and transfers them into storage magazines, providing consistent board handling and reliable integration with upstream SMT equipment. By automating PCB collection and magazine loading, the unloader helps maintain a continuous production flow, reduce manual handling, and improve overall line efficiency.

Key features

  • Transfers PCBs from SMT production line to PCB Magazines
  • Designed for smooth and consistent board transfer.
  • Accommodates different PCB magazine configurations.
  • Designed to connect with reflow oven and other SMT equipment.
  • Automates the PCB unloading process at the end of the line.
  • Supports consistent PCB unloading for production environments.
  • Suitable for integration into automated SMT production lines.

Technical specifications

ItemPCB Magazine Unloader Machine
Machine TypePCB Unloader
Voltage220 V, 110 V
Core ComponentsPLC, Motors, Touch Screen
Warranty1 Year
Weight (kg)150KG Approx
Brand NameFaroads.com
Place of OriginShenzhen China
PCB Size (L*W)50*50mm-400*330mm
Dimension (L*W*H)1670*850*1250mm
Magazine Size (L*W*H)460*400*563mm
Loading TimeApprox. 6 seconds Magazine Change Over Time Approx. 25 seconds
Magazine Change Over TimeApprox. 25 seconds
Power Source & Consumption100-230VAC (customized), 1ph, max 300VA
Air Pressure & Consumption4-6 bar, max 10 L/min
Transport Height (mm)900±30 (or customized)

Request a quote for the UL400
