FAROAD · P Series

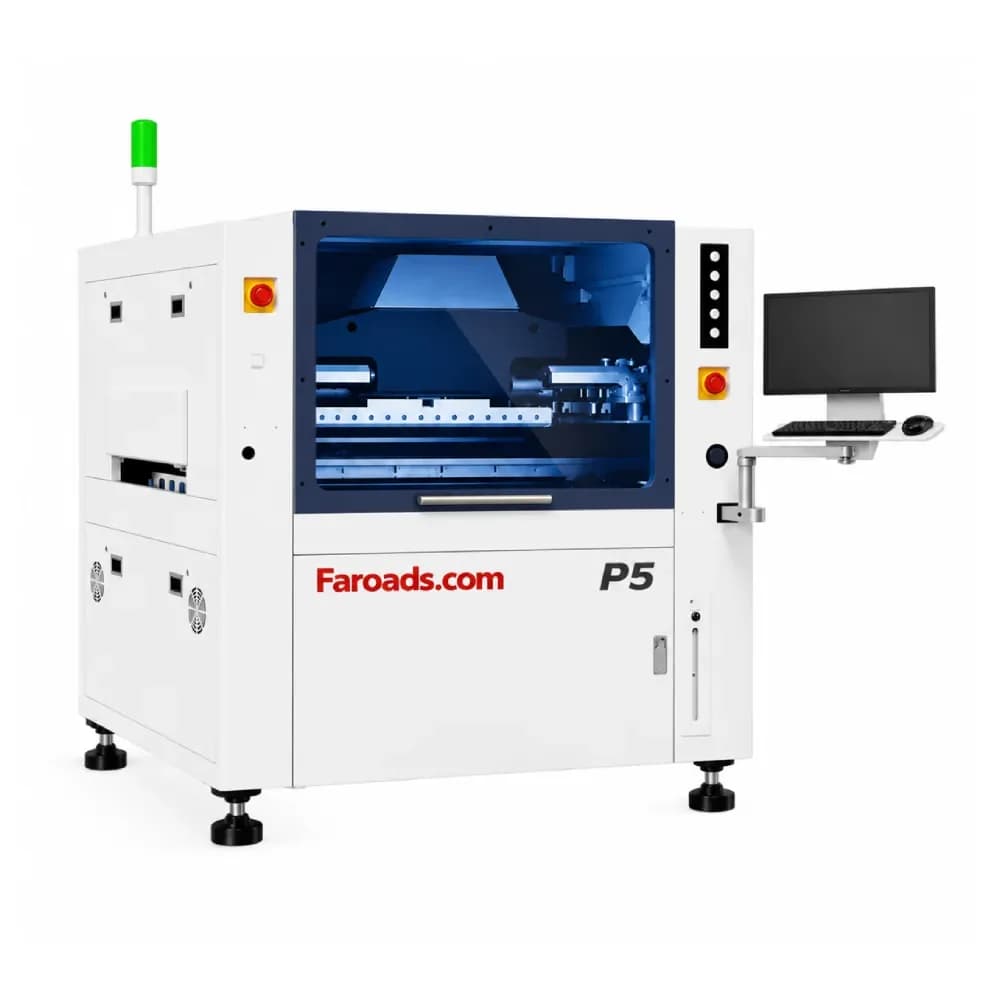

Solder Paste Printer P5
Model P5
PCB solder paste printer p5 is a high-precision machine designed for SMT production lines. It features an advanced vision alignment system, adjustable squeegee pressure, and user-friendly operation. Ideal for small to medium-sized PCBs
Overview
Advanced SMT Solder Paste Printer Series P5 Experience precision and reliability with our advanced line of solder paste printers, designed to meet the demanding requirements of modern SMT assembly processes. PCB Size Compatibility P4 Model: Accommodates PCB sizes up to 500 x 500 mm Stencil Positioning System Our innovative stencil positioning system ensures precise alignment for consistent solder paste deposition: High-precision servo motors with closed-loop control Advanced vision alignment system with dual cameras Automatic fiducial recognition and correction Real-time position feedback and compensation Programmable alignment points with automatic optimization
Key features
- Stencil Positioning System
- Printing accuracy: ±25 μm @ 6σ
- Print speed: Up to 150 mm/second
- Squeegee pressure control: 0-15kg, digitally controlled
- Programmable printing speed and pressure parameters
- Multi-zone vacuum support system for stable PCB fixturing
Technology
- Printing Accuracy
Technical specifications
Specification
| Specification | Specifications | +18um@6o,Cpk≥2.0 |
|---|---|---|
| Printing Accuracy | Not specified | Not specified |
Request a quote for the P5
Share your board sizes, components and throughput targets and our team will recommend a configuration.
