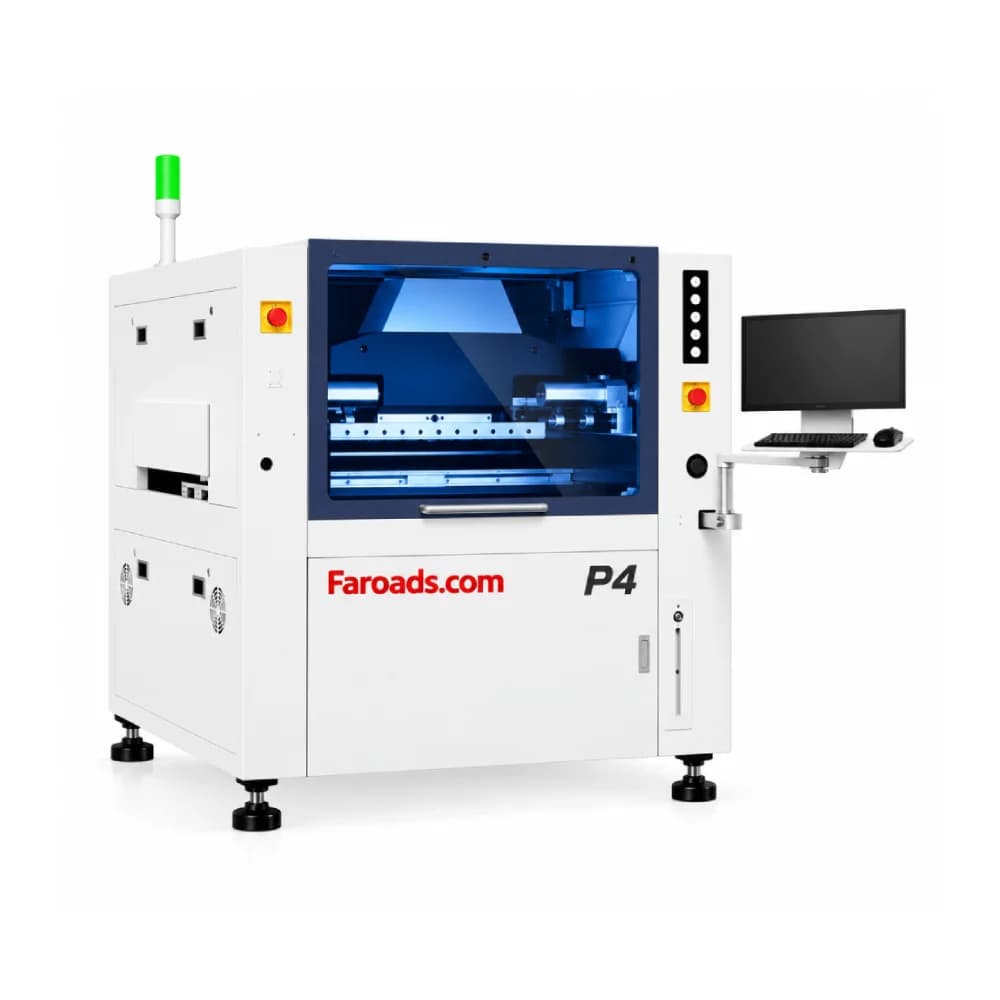

Solder Paste Printer P4
Model P4
Fully Automatic Visual Solder Paste Printer is designed for high-precision SMT production and large-format PCB applications. It supports substrates up to 340 × 400 mm with printing accuracy of ±25 μm @ 6σ, Cpk ≥ 2.0
Overview
Solder Paste Printer P4 is built for manufacturers requiring reliable solder paste printing across a wide range of PCB sizes. Its automated stencil positioning, intelligent transmission system, flexible PCB support, and software-controlled squeegee pressure help maintain consistent printing results throughout production. The machine also incorporates an intelligent closed-loop compensation platform and automatic cleaning structure, while supporting PCB thicknesses from 0.6–6 mm and print speeds of 1–120 mm/sec
Key features
- Medium Format PCB Support – Handles substrates up to 340 × 400 mm.
- High-Precision Printing – Achieves printing accuracy of ±25 μm @ 6σ, Cpk ≥ 2.0.
- High Repeat Position Accuracy – Provides repeat positioning accuracy of ±10 μm @ 6σ, Cpk ≥ 2.0.
- Automatic Stencil Positioning – Automatically positions the stencil after it is placed into the support frame.
- Intelligent Board Transport Provides automatic track-width adjustment and supports multiple PCB transport directions.
- Flexible PCB Support System Uses support blocks, support pins and a flexible vacuum cavity for PCB positioning.
- Automatic Platform Detection automatically adjusts platform height according to PCB thickness.
- Intelligent Closed-Loop Compensation uses a UVW platform with independent shaft-drive adjustment for precise compensation.
- Constant Squeegee Pressure Control allows squeegee pressure to be adjusted through software control.
- Flexible Squeegee System supports print pressure from 0–20 kg and printing speeds of 1–120 mm/sec.
Technical specifications
Process Parameters
| Printing Accuracy | ±20μm@6σ, CPK≥2.0 |
|---|---|
| Repeat Position Accuracy | ±10μm@6σ, CPK≥2.0 |
| Cycle Time | 7S |
| Screen Frame Size | 470mm × 370mm ~ 737mm × 737mm |
| Screen Frame Fixed | Cylinder |
| Platform Adjustment Range | X: ±6mm, Y: ±6mm |
| Platform Adjustment Angle | Z: ±2° |
| Print Size | Standard: Min. 50 × 50mm, Max. 510 × 510mm |
| PCB Thickness | 0.4mm - 6mm |
| PCB Weight | ≤4kg |
| Direction | L→R, L→L, R→L, R→R |
| Speed | Sectional control, 1500mm/s (Max) |
| Height | 900 ± 20mm |
| Demoulding Method | Separation after squeegee up; Squeegee up after separation |
| Demoulding Speed | 0.1–20mm/s |
| Demoulding Distance | 0–3mm |
| Voltage | 220V ±10%, Single phase 50/60Hz |
| Power | 3kW |
| Air Supply | 4.5–6kgf/cm² |
| Gas Consumption | 0.5ml/s |
| Insulation Resistance | 1KV/3MΩ |
| Grounding Resistance | ≤0.1Ω |
| Operating Noise | ≤87dB |
| Dimension | 1220 × 1430 × 1550mm |
Intelligent Transmission System
| Width Adjustment | Program automatic track width adjustment |
|---|---|
| Transport Direction | L→R, L→L, R→L, R→R |
| Substrate Weight | ≤5kg |
| Board Height | ≤25mm |
| Transport Height | 900±40mm |
Standard Configuration
| Automatic Positioning Module of Stencil | Put the stencil into the support frame, the squeegee automatically realizes the positioning of the stencil. |
|---|---|
| PCB Support Positioning System | Support block, support pin, free splicing type vacuum cavity |
| Substrate Fixture | Flexible side clamp, Z-direction retractable platen device |
| Squeegee | Directly connected screw / Double pivot suspended scraper |
| Automatic Platform Detection System | The platform height is automatically calibrated according to the thickness of the board |
| Intelligent Transport System | Automatic stop device + automatic substrate positioning + L→R, L→L, R→R, R→L |
| Intelligent Closed-Loop Compensation Platform | UVW platform, shaft drive independent adjustment |
| Constant Intelligent Control System of Squeegee Pressure | Pressure adjusted by software control |
| Cleaning Structure | Wet cleaning + dry cleaning + vacuum free combination |
| Approximate Dimensions | 1425 (L) × 1584 (W) × 1545 (H) mm |
| Approximate Weight | 1350kg unboxed (dependent upon configured options selected with machine) |
Electrical Configuration & Environmental Requirements
| Voltage | Single-phase AC220V±10%, frequency 50Hz |
|---|---|
| Power | 2kW |
| Air Supply | 4.5-6kgf/cm² |
| Temperature | -20°C ~ +45°C |
| Humidity | Relative humidity 30%-70% |
Options
Glue Dispenser
Automatic Add Glue dispenser can be added where it is required to place the glue on the pcb board
2D Inspection
2D Inspection System can be added for the inspection of solder paste after application.
Size
340mm * 460mm
